BaseLayerPicker

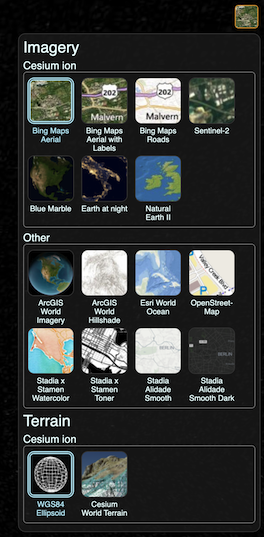

BaseLayerPicker with its drop-panel open.

The BaseLayerPicker is a single button widget that displays a panel of available imagery and terrain providers. When imagery is selected, the corresponding imagery layer is created and inserted as the base layer of the imagery collection; removing the existing base. When terrain is selected, it replaces the current terrain provider. Each item in the available providers list contains a name, a representative icon, and a tooltip to display more information when hovered. The list is initially empty, and must be configured before use, as illustrated in the below example.

By default, the BaseLayerPicker uses a default list of example providers for demonstration purposes. Notably some of these providers, such as Esri ArcGIS and Stadia Maps, have seperate terms of service and require authentication for production use.

Throws:

• DeveloperError : Element with id "container" does not exist in the document.

Example:

// In HTML head, include a link to the BaseLayerPicker.css stylesheet,
// and in the body, include: <div id="baseLayerPickerContainer"
//   style="position:absolute;top:24px;right:24px;width:38px;height:38px;"></div>

//Create the list of available providers we would like the user to select from.
//This example uses 3, OpenStreetMap, The Black Marble, and a single, non-streaming world image.
const imageryViewModels = [];
imageryViewModels.push(new Ditap.ProviderViewModel({
     name: "Open\u00adStreet\u00adMap",
     iconUrl: Ditap.buildModuleUrl("Widgets/Images/ImageryProviders/openStreetMap.png"),
     tooltip: "OpenStreetMap (OSM) is a collaborative project to create a free editable \
map of the world.\nhttp://www.openstreetmap.org",
     creationFunction: function() {
         return new Ditap.OpenStreetMapImageryProvider({
             url: "https://tile.openstreetmap.org/"
         });
     }
 }));

 imageryViewModels.push(new Ditap.ProviderViewModel({
     name: "Earth at Night",
     iconUrl: Ditap.buildModuleUrl("Widgets/Images/ImageryProviders/blackMarble.png"),
     tooltip: "The lights of cities and villages trace the outlines of civilization \
in this global view of the Earth at night as seen by NASA/NOAA's Suomi NPP satellite.",
     creationFunction: function() {
         return Ditap.IonImageryProvider.fromAssetId(3812);
     }
 }));

 imageryViewModels.push(new Ditap.ProviderViewModel({
     name: "Natural Earth\u00a0II",
     iconUrl: Ditap.buildModuleUrl("Widgets/Images/ImageryProviders/naturalEarthII.png"),
     tooltip: "Natural Earth II, darkened for contrast.\nhttp://www.naturalearthdata.com/",
     creationFunction: function() {
         return Ditap.TileMapServiceImageryProvider.fromUrl(
             Ditap.buildModuleUrl("Assets/Textures/NaturalEarthII")
         );
     }
 }));

//Create a CesiumWidget without imagery, if you haven't already done so.
const cesiumWidget = new Ditap.CesiumWidget("ditapContainer", { baseLayer: false });

//Finally, create the baseLayerPicker widget using our view models.
const layers = cesiumWidget.imageryLayers;
const baseLayerPicker = new Ditap.BaseLayerPicker("baseLayerPickerContainer", {
    globe: cesiumWidget.scene.globe,
    imageryProviderViewModels: imageryViewModels
});

See:

• TerrainProvider
• ImageryProvider
• ImageryLayerCollection
